Siglent SSA3021X Spektrumanalyzer / Das SSA3021X ist ein leistungsstarker Spektrumanalyzer, der eine zuverlässige und automatische Messung bietet.

Software license for resale - no copyright transfer The Tekbox EMC compliance software EMCview for PCs is a user-friendly EMC pre-compliance testing of radiated and conducted emissions. It is a perfect complement for automated testing using our LISNs, RF current probes, measurement antennas and TEM Cells. A built-in amplitude correction enables correction and conversion coefficients for cables, amplifiers, attenuators, LISNs, TEM cells, antennas, RF current probes, filters and any other component in the signal chain. There is no need for a time-consuming setup. The SW is ready for measurements straight after installation. All emission related standards and a few automotive manufacturer standards are pre-configured in corresponding project files. The project files take care of all necessary settings to conduct standard compliant measurements. Besides using pre-configured projects, the user can easily create his own projects using a built in editor or any simple text editor. The graph supports two complete measurement runs such as for example Average / Quasi-Peak or Peak / Quasi Peak and in addition a fast Quasi-Peak scan of critical peaks. Graphs can be saved and overlayed with newer measurements to track and document design modifications. Furthermore, EMCview together with our GPS receiver can be used to carry out RF-coverage measurements. An export feature creates KML files which link the result to google maps. Immunity testing is supported with dedicated menus, controlling the tracking generator of the spectrum analyzer. EMCview PRO, offers real-time measurement support for spectrum analyzers with real-time capability. Furthermore, EMCview PRO offers advanced conducted immunity testing features for spectrum analyzers with tracking generators. The customer can select between a standard EMCview license or EMCview PRO. Users with a standard EMCview license have the option to upgrade to EMCview Pro. Software limitation without a license: the measurement is limited to the frequency range below 10MHz EMCview currently supports the following spectrum analyzers Rigol (DSA and RSA) Siglent (SSA/SSA plus/SSA -R and SVA) Siglent EU, Siglent USA R&S (FPC and FPH) OWON XSA, HSA and NSA Teledyne Test Tools T3SA series BK Precision 2683 series ComPower SPA-900TG series Multicomp MP700xyz series TheEMCShop ESA series UNI-T UTS series The spectrum analyzer should be equipped with the EMI option.   Features numerous pre-configured project files for CISPR-xx (EN550xx) emission measurements graph supports two complete measurement runs, same as in test house fast Quasi-Peak scan of critical peaks, immune to frequency drift of the selected peaks configurable limit lines and segment files configurable correction files for cable, LISN, amplifier, antenna etc. configurable margins for the identification and selection of critical peaks supports import and overlaying of reference measurements for comparison purpose linear or logarithmic frequency axis automatic creation of test reports many import/export-functions Applications in house measurement of EMC behavior during product design phase EMC training in lab, school and university pre-compliance test of products before submitting it to the test house test cost reduction reduced time to market

Software license for resale - no copyright transfer Bei der TG-SSA3000X handelt es sich um die Aktivierungslizenz des Tracking Generator Kit für die Siglent SSA3000X Serie.

Software license for resale - no copyright transfer Bei dem EMI-SSA3000X handelt es sich um die Aktivierungslizenz für das EMI-Messkit. Das Messkit enthält einen Quasi-Peak-Detektor, RBW-Bandbreiten von 200 / 9k / 120kHz und einen 6-dB-Filter für EMI-Voreinhaltungsmessungen.

Software license for resale - no copyright transfer Bei dem AMK-SSA3000X handelt es sich um die Aktivierungslizenz für das Advanced-Messkit der SSA3000X Serie.

Software license for resale - no copyright transfer Bei der SSA3000-Refl handelt es sich um die Aktivierungslizenz für die Reflexions-/VSWR-Option der SSA3000X und SSA3000X Plus Serie.  Eine externe Rückflussdämpfungsbrücke ist erforderlich.

Das UKitSSA3X Zubehör-Kit verfügt über verschiedene Kabel, Anschlüsse und ein Dämpfungsglied zur Kombination mit dem Spektrumanalysator. Technische Daten   Spezifikation UKitSSA3X Kabel 1 N (M) – SMA (M Kabel 2 N (M) – N (M) Stecker 1 N (M) – SMA (F) Stecker 2 N (M) – BNC (F) Dämpfungsglied 10dB

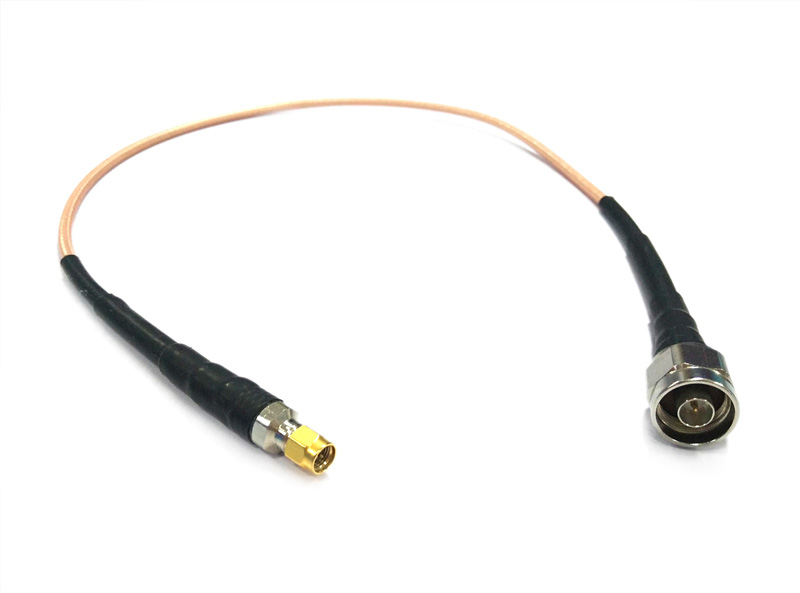

Das N-SMA-6L Kabel von Siglent verfügt über eine Bandbreite von 6 GHz Technische Daten   Parameter N-SMA-6L Bandbreite 6GHz Länge  0,7 Meter Anschlüsse N zu SMA

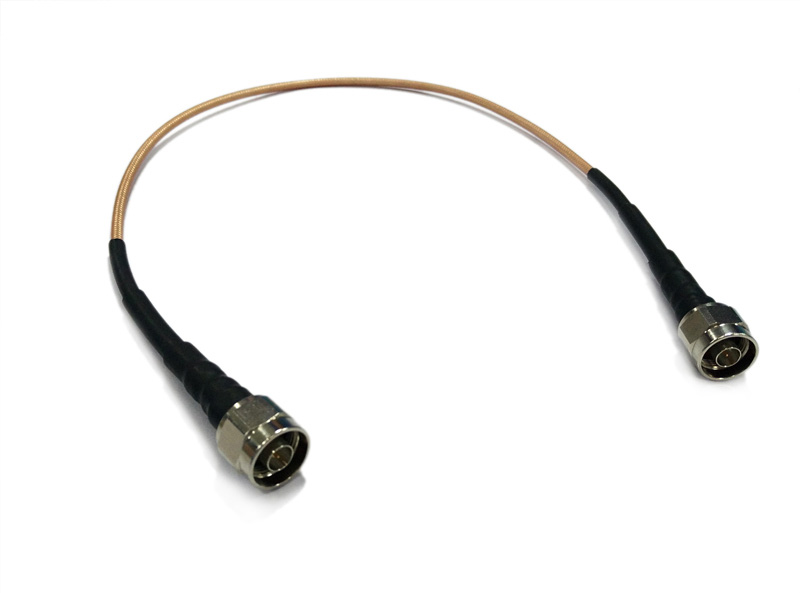

Das N-N-6L Kabel verfügt über eine Bandbreite von 6 GHz. Technische Daten Parameter NN-6L Impedanz 50 Ohm Länge 1 Meter Anschlüsse BNC

Das N-BNC-2L Kabel von Siglent ist 0,7 m lang und hat eine Bandbreite von 2 GHz. Technische Daten   Parameter N-BNC-2L Dämpfungswert 20dB Impedanz 50 Ohm Frequenz Gleichstrom - 2 GHz Nennleistung 1 Watt VSWR <=1.2

Die BAG-S1 ist eine Tragetasche für ausgewählte Siglent Serien.
