ALLDAQ ADQ-258-cPCI / ±10,24 V, 18 bit A/D, 1,6 MS/s, 8x I/O
Product number:
122583
Product information "ALLDAQ ADQ-258-cPCI / ±10,24 V, 18 bit A/D, 1,6 MS/s, 8x I/O"
Ideal for high-speed data logging and audio analysis
The ADQ-258 DAQ board has 8 potential-free voltage inputs. It is equipped with individual 16bit A/D converters per channel, which can record synchronously with up to 2MS/s. In addition, an 8-bit digital I/O port and 2 isolated trigger inputs are available. Typical applications are high speed data logging and audio analysis.
- Analog data acquisition card with CompactPCI interface
- 8 potential-free, fully differential voltage inputs
- insulation voltage: 700 V (channel to channel / channel to PC)
- 18 bit A/D converter per channel for synchronous sampling up to 1.6 MS/s
- Input voltage range: ±10,24 V
- Digital I/O port (8 bit) via HDMI connector
- 2 isolated digital trigger input for A/D part
- &“monitoring of the digital inputs for bit &“change with interrupt generation

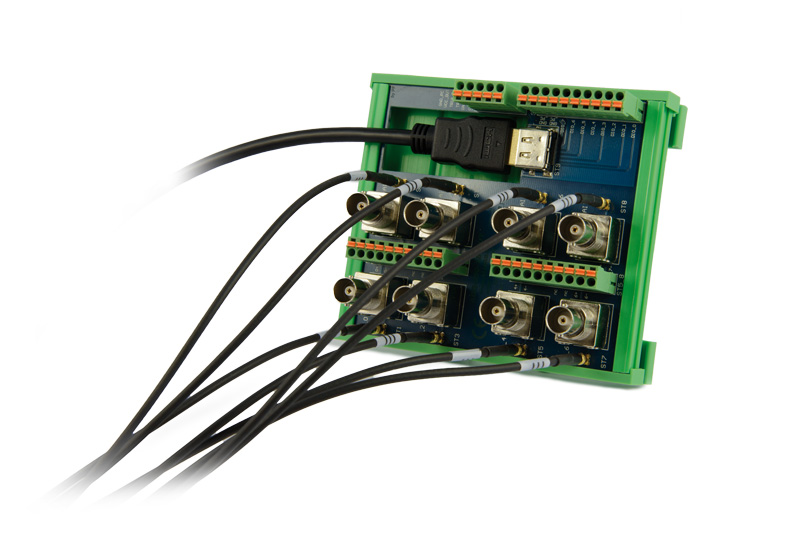

- Optionally suitable connection cable with MMCX plug to BNC plug or MMCX plug to MMCX plug

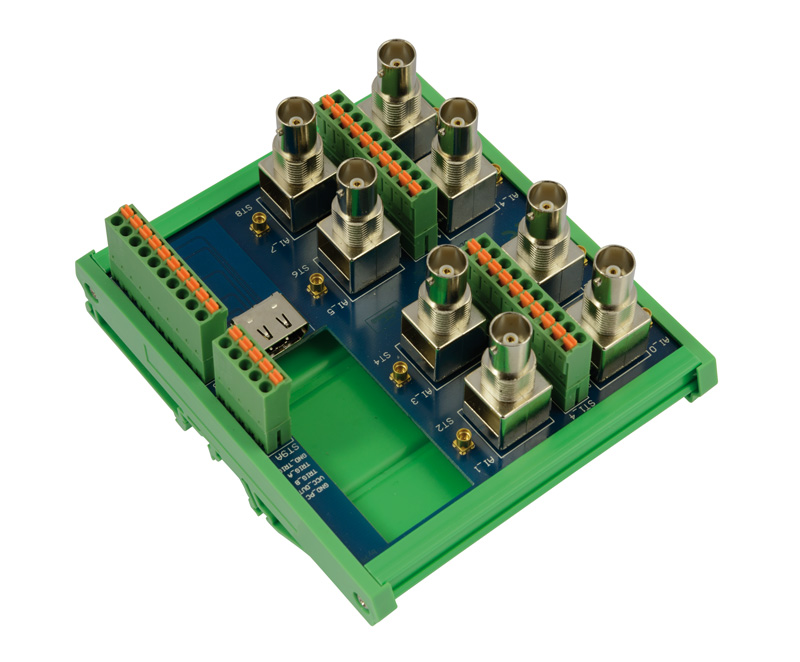

- Optional terminal block for ADQ-250 series
- Comprehensive software support included (see "Software"-Tab)
The boards are available with a wide range of voltage inputs on demand. As with all our boards we can adjust them to your individual needs.
Need an official calibration certificate?
We cooperate with independent DAkkS-accredited testing laboratories.
